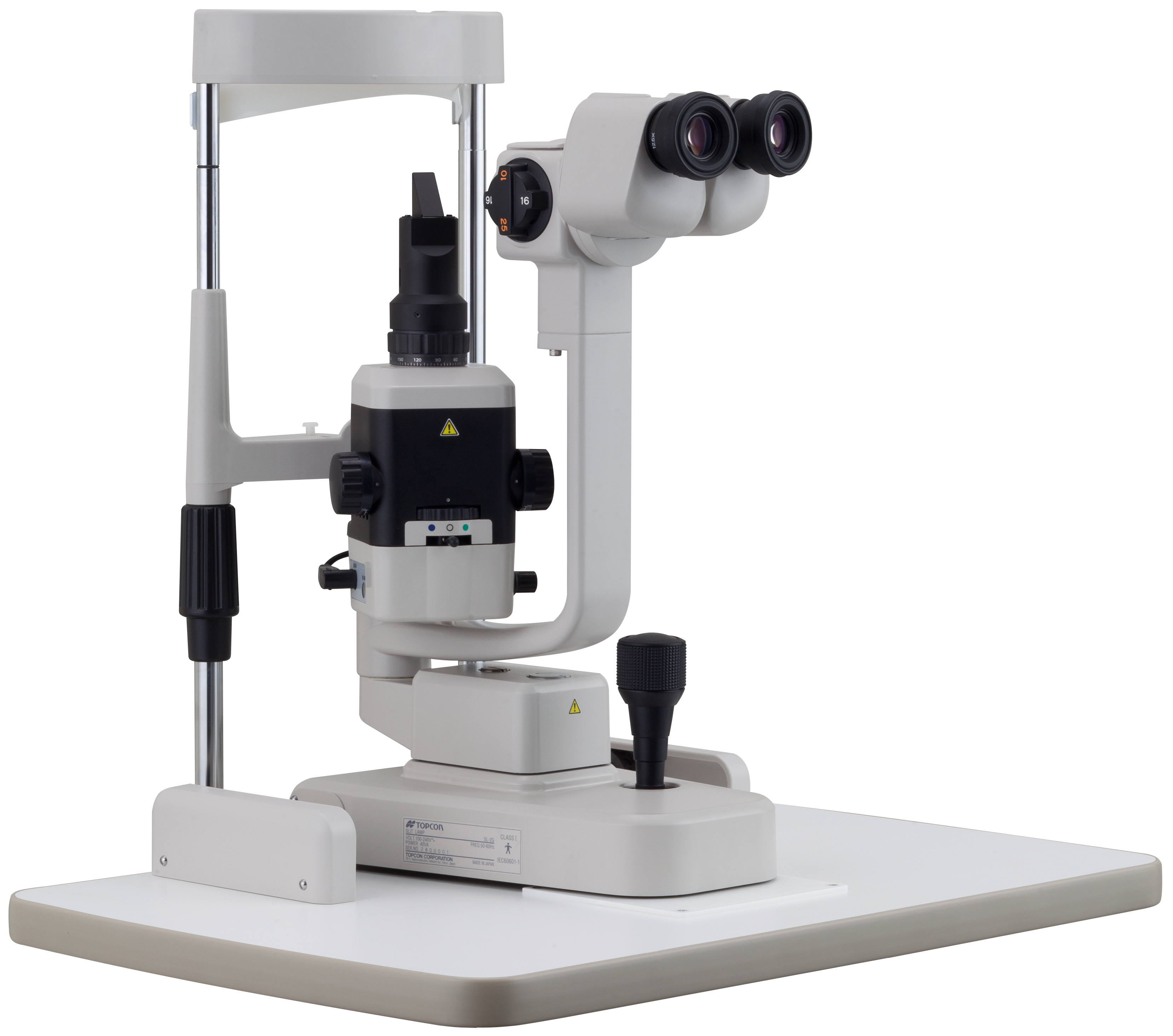

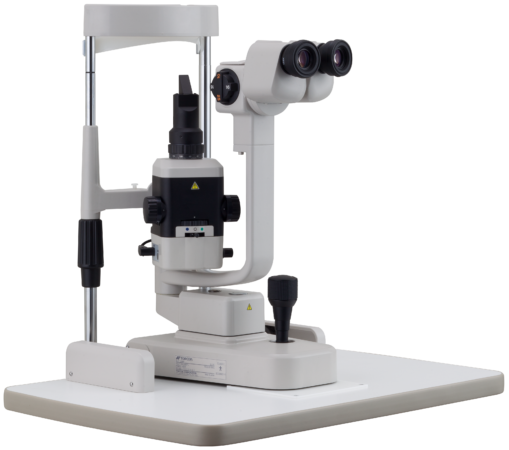

SL-2G
Basic Slit Lamp
The SL-2G is the basic low illumination slit lamp in our product range. The SL-2G slit lamp has a LED light source which is economical and environmentally friendly. The LED light has an approximate life time of 10.000 hours which is 100 times longer than conventional halogen bulbs. The LED light source offers a uniform and consistent illumination.
The Topcon SL-2G slit lamp incorporates 3 magnifications: 10x 16x and 25x. Furthermore it incorporates blue and red-free filters.
Goldmann tonometers, a yellow filter, the Topcon paralell binocular tube and the Topcon fundus viewer are optional.
Key Features
- LED illumination
- 3 magnifications: 10x, 16x, 25x
- Blue & red-free filter
- Various options available such as tonometer and yellow filter
| MICROSCOPE: | |
| Type | Galilean type |
| Magnification Selection | 3 step by drum rotation |
| Eyepiece | 12.5x |
| Magnification Step | 10x / 16x / 25x |
| Magnification Ration (Field of View) | 10x (φ22.5mm) |
| 16x (φ14.1mm) | |
| 25x (φ8.8mm) | |
| Diopter Adjustment Range | -5D to +5D |
| SLIT ILLUMINATION: | |
| Slit Width |
Continuous from 0 mm to 14 mm (14 mm circle)
|
| Slit Length |
Continuous from 1 mm to 14 mm (14 mm circle)
|
| Aperture Diameter |
Continuous from 1 to 14 mm , 0.3, 1, 5, 10, 14 mm
|
| Filter | Blue, Red-Free |
| Illumination Lamp | LED |
