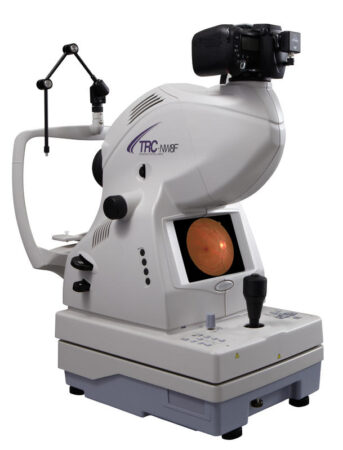

TRC-NW8F
Non-Mydriatic Retinal Camera

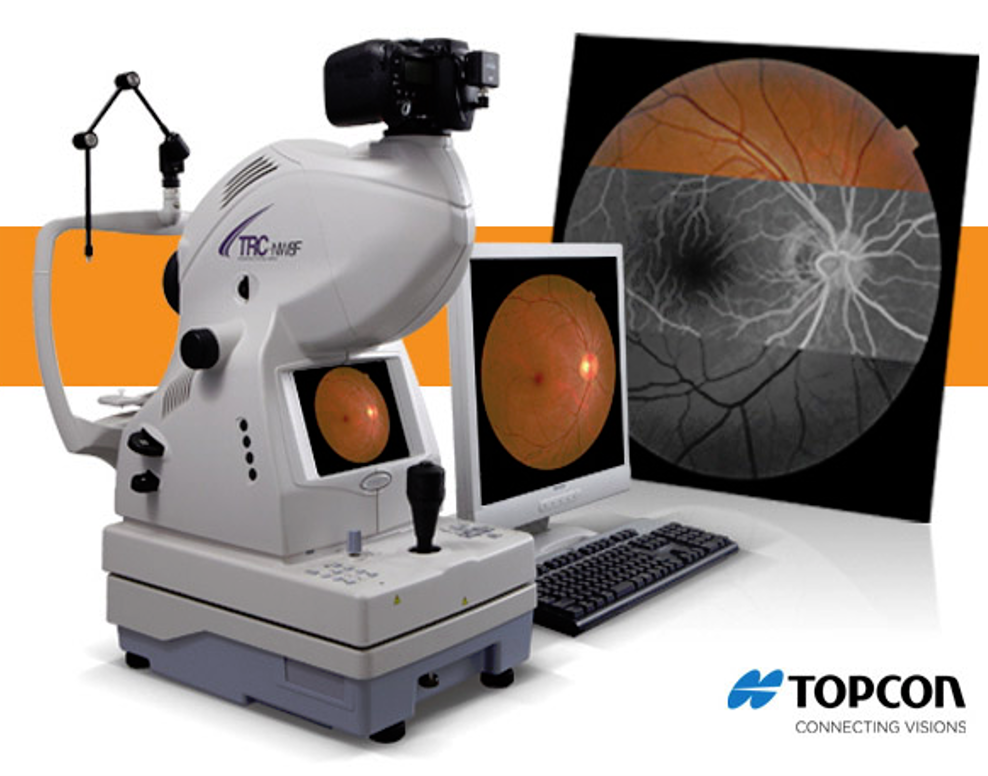

TRC-NW8 is an easy-to-use, non-mydriatic retinal camera designed to obtain high-resolution color and monochrome images of the retina and the anterior segment. The 16.2-megapixel camera provides high-resolution images with a 45° field of view. Nine internal fixation points facilitate the composition of wide-angle views of the retina.
TRC-NW8F adds fluorescein angiography (FA) imaging to the TRC-NW8.
IMAGEnet Capture Software provides an easy-to-use telemedicine color fundus screening package as well as FA testing. A wireless review station allows image review from any connected station.
Key Features

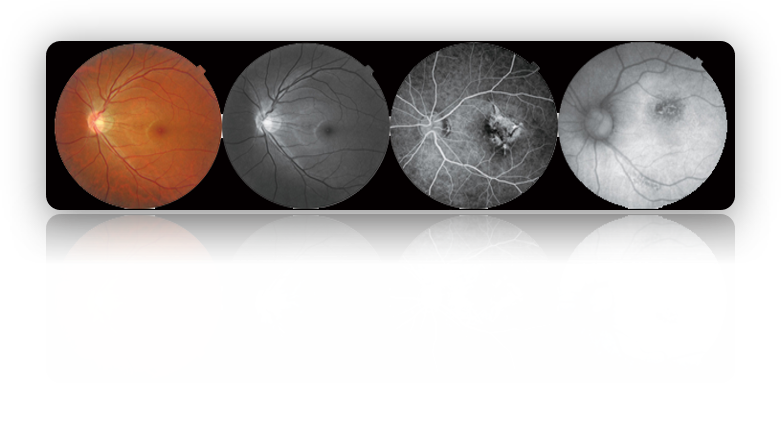

- Colour, red-free & fluorescein
- 45° angle available
- Wide 85° angle of coverage with internal fixation
- Auto-focus & auto-shoot
- Panoramic overview with optional mosaic module
- Small pupil capability down to 3.3mm
- Anterior support
- Stereo photography
- IMAGEnet i-base connection
| Angle of Coverage | 45° |
| Working Distance | 40.7mm |
| Photographable Area of Pupil | ø4.0mm or more |
| ø3.3mm or more when the small pupil diaphragm is used | |
| Type of Photography | Color photo, Red-free photography**, FA photography |
| Focus Range to Correct the Refractive Errors of the Patient’s Eye | Without correction lens -13D to +12D (Where split lines are used) |
| With minus correction lens -12D to -33D | |
| With Plus Correction lens +9D to +40D | |
| Auxilliary function for photography | Auto Focus Function |
| Fixation Target | Internal / External fixation target can be selected |
| Internal fixation target: | |
| Center / Periphery | |
| Right / Left eye automatic detection | |
| Optional position presetting function |
