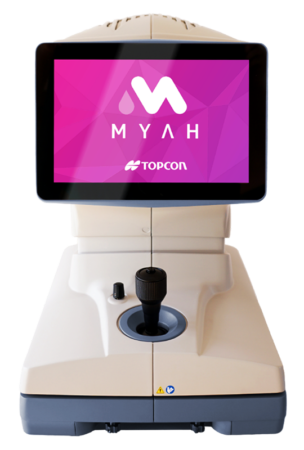

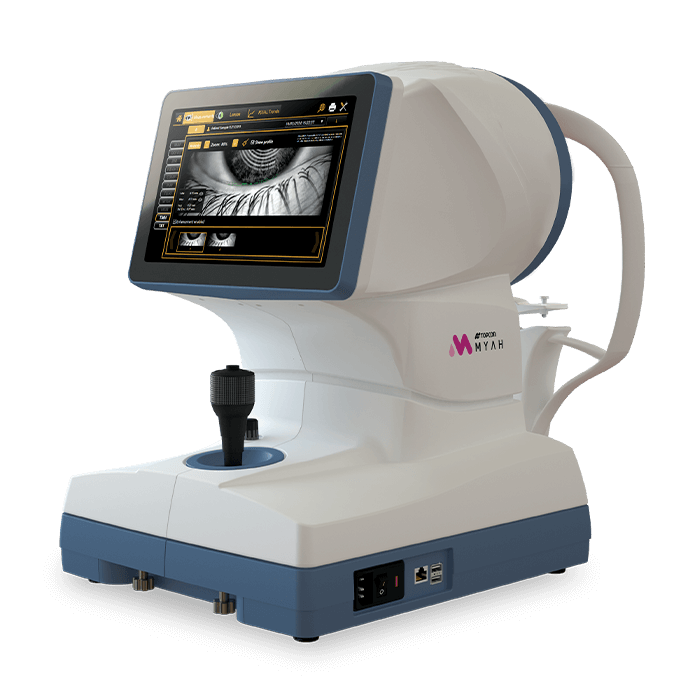

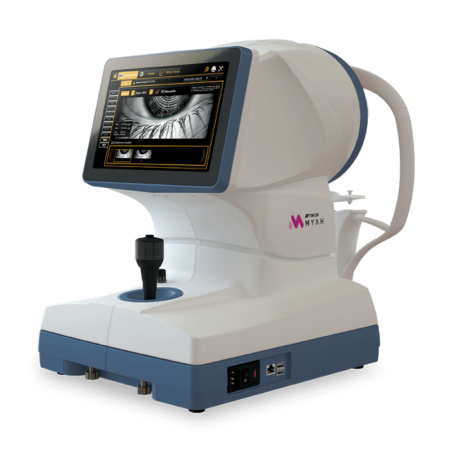

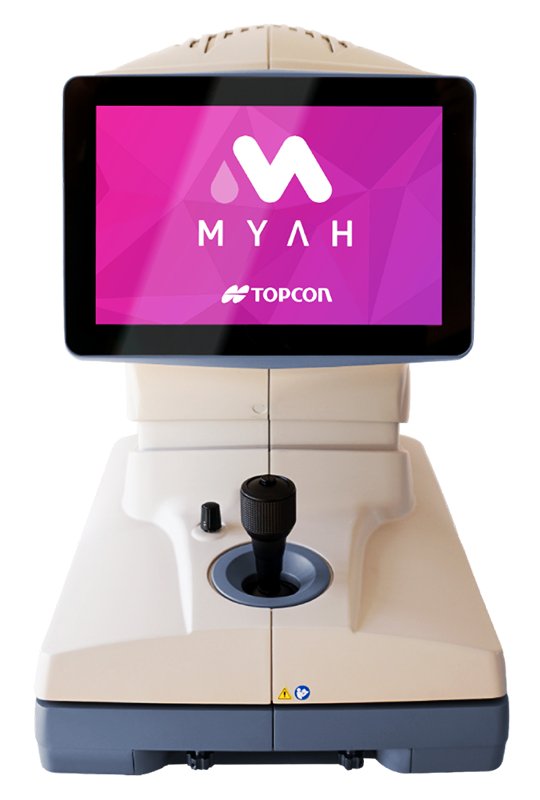

MYAH
Myopia and Dry Eye Practice
MYAH offers all the technologies required to support myopia management: optical biometry, corneal topography and pupillometry — it is a one-time investment. In addition, MYAH is an all-in-one device that offers an evolving platform which provides the tools to add or grow Dry Eye Management.
BUILD your Myopia Management Service
MYAH provides the initial baseline to monitor risk, allowing you to start the conversation early with parents.
MANAGE: MONITOR AND COMPARE
MYAH provides essential information to monitor eye elongation and compare axial length measurements with built-in growth curves.
GROW your Myopia Management Service
Offering axial length screening tests may complement your refraction tests.
KEY FEATURES:
- Corneal Topography including keratoconus screening and pupillometry
- Axial Length measurement by Optical Low Coherence Interferometry
- Progression reports for analyzing treatment efficacy
- Comprehensive suite of Dry Eye assessment tools
- Patient-friendly with rapid capture
- Compact, space-saving, easy to operate
| MYAH SPECIFICATION | |
| FEATURE | SPECIFICATION |
| Keratoscopic cone | 24 rings equally distributed on a 43 D sphere |
| Analyzed points | Over 100.000 |
| Measured points | Over 6.000 |
| Corneal coverage | Up to 9.8 mm on a sphere of radius 8,00 mm (42.2 diopters with n=1,3375) |
| Diopter power range | 28.00 – 67.50 D |
| Display Resolution | 0.01 D, 0,01mm |
| Axial Biometry | Low-coherence interferometry on optical fiber (SLED @ 820 nm) |
| Capture system | Guided-focus |
| Monitor | LCD 10,1 inch capacitive touch screen |
| Database | Internal |
| Pupillometry | Dynamic, Photopic, Mesopic, Scotopic |
| Fluorescein | Image, Video |
| Reports | Corneal map, Comparison map, Contact lens, Height map, Zernike analysis, Pupillometry, Meibomian glands, Tear Film |
| Break-up Time, Tear Meniscus Height, Rx/AL Trend analysis, Fluorescein report | |
| Working environment | 10 °C – 40 °C, Relative humidity 8 – 75% (no condensing), Atmospheric pressure 800 – 1060 hPa |
| Power supply | AC 100 – 240 V 50/60 Hz |
| Power consumption | 100 VA |
| Dimensions | 320 mm (W) x 490 mm (H) x 470 mm (L), 18 Kg |
| Printing options | USB printer, Network printer, PDF on network shared folder, PDF on USB |
| PDF or Image on network folder or on USB | |
| Operating System | Windows 10 64-bit |
| RAM | 4 GB |
| Hard Disk | 500 GB |
| External connections | LAN integrated, 2x USB |
| INFORMATION ON MEASUREMENTS | ||||
| MEASUREMENT | MEASURING RANGE | DISPLAY RESOLUTION | IN VIVO REPEATABILITY | |
| Keratometry | Radius of curvature | 5,00 – 12,00 mm | 0.01 mm | ±0,02 mm |
| Curve Radius in Diopter (D) (n=1,3375) | 28.00 – 67.50 D | 0.01 D | ±0,02 mm | |
| Axial Length | 15,00 – 36,00 mm | 0,01 mm | ±0,03 mm | |
| Pupil dimension | 0,50 – 10,00 mm | 0,01 mm | N/A | |
| Limbus (White-To-White) | 8,00 – 14,00 mm | 0,01 mm | ±0,05 mm | |
| IBI Index (Interblink Interval) | 0,2 – 20,0 s | 0,1 s | N/A | |
| Non-invasive Break-Up Time (TBT) | 0,5 – 30,0 s | 0,1 s | N/A | |
| Meibomian Glands area of loss | 0 – 100% | 1% | N/A | |
| Tear Meniscus Height | 0,10 – 1,00 mm | 0,01 mm | N/A | |
